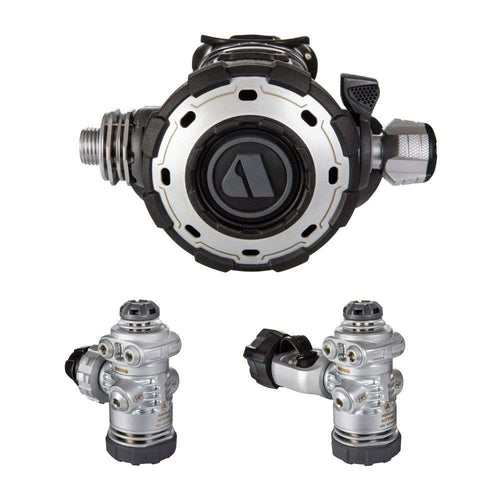

MTX-RC - Dive Regulator

First Stage

• Satin plated brass body with heat exchanging ribs for maximum thermal performance.
• Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
• Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
• Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
• 5 x medium pressure ports, 4 mounted on a rotating turret for improved hose orientation
• 2 x angled high pressure ports for optimal hose routing and fitting of transmitters.
• Double swivel hose for greater freedom of movement and comfort.
• Easy to grip DIN hand-wheel or over-moulded yoke hand-wheel, only requires one hand to release.
• DIN, Yoke and M26 Thread available, 300bar, 232bar and M26 300bar (O2) respectively.
• Tested for Octopus use - EN250A to 60 metres cold water.
• Nitrox/Oxygen compatible – Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.

• Protective bumpers to protect the second stage from impacts and scratches in the most vulnerable places.
• Ergonomic and simple to use venturi lever.
• Oversize breathing effort adjuster makes adjustment easy in cold water whilst wearing gloves.
• Large purge button.
• Reversible second stage for either a left or right hand gas supply configuration.
• A heat exchanger (patented) dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for a more comfortable breathe.
• Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.
• Comfo-bite mouthpiece
• Flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
• Designed and manufactured in the UK.
• No single use plastic in the packaging

• Connections Yoke and DIN available
• Type of first stage Over-balanced diaphragm design, environmentally sealed
• Body Type One piece forged body
• Number of HP ports 2 (7/16" UNF)
• Number of MP ports 5 (3/8" UNF)
• Environmental Dry Kit Standard
• First stage exterior Satin chrome
• Orientation Convertible LH or RH
• Coldwater Use: Yes - extreme
• Type of second stage Pneumatically balanced
• Opening Effort Control Knob: Yes
• Integrated Venturi Lever: Yes
• Mouthpiece Comfo-bite™
• Exhaust tee Diver Changeable - one set supplied
• Heat Exchanger for freezing resistance: Yes
• Hose type Braided Flexi-hose
• Nitrox compatible: Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
