MTX-R SIDEMOUNT SET - Dive regulator
$2,299.00

MTX-R SIDEMOUNT SET - Dive regulator

$2,299.00
The MTX-R sidemount set is a super tough, rugged, high performance, go anywhere sidemount regulator configuration designed to meet the rigours of cold water and extreme sidemount diving. The MTX-R is highly reliable and also very easy to service out in the field which make it an ideal choice for the expedition and exploration diver.

First Stage

  • Available in yoke or DIN configuration.
  • Suitable for cold water use (below 10°C / 50°F)
  • Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in thehose to increase at a faster rate than ambient. This results in superior performance at depth.
  • Over-moulded innovative endcap and environmental diaphragm, a forged1st stage body offering maximum thermal performance.
  • The 5th 3/8” UNF medium pressure port includes a protective bumper when not in use.
  • Forged first stage body with heat exchanging ribs for maximum thermal performance.
  • Angled HP ports for optimal hose routing and fitting of transmitters.
  • Forged rotating turret with medium pressure ports in a parallel direction for improved hose orientation.
  • Ribbed diaphragm clamp for improved heat exchange in cold waterconditions.
  • Double swivel hose for greater freedom of movement and comfort.
  • Tested for Octopus use - EN250A cold water.
  • Nitrox/Oxygen compatible – Up to 40% O² outside the EU (European Union), within the EU anything above 21% O² must use an M26 Connection.
See full details
Colors : Satin Chrome / White
Measurement Unit :
Find a Store
Item n°: RP111111
FEATURES & BENEFITS - MTX-R SIDEMOUNT SET - Dive regulator

FEATURES & BENEFITS

The MTX-R sidemount set is a super tough, rugged, high performance, go anywhere sidemount regulator configuration designed to meet the rigours of cold water and extreme sidemount diving. The MTX-R is highly reliable and also very easy to service out in the field which make it an ideal choice for the expedition and exploration diver.

The MTX-R has excellent cold water performance and has a greatly reduced risk of free flow. This has been achieved by improving several areas, including an innovative endcap and environmental diaphragm, a forged 1st stage body offering maximum thermal preference, a ribbed diaphragm clamp and a redesigned & enlarged heat exchanger on the 2nd stage with metal incorporated into the front cover design. See product features

FEATURES

First Stage

  • Available in yoke or DIN configuration.
  • Suitable for cold water use (below 10°C / 50°F)
  • Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in thehose to increase at a faster rate than ambient. This results in superior performance at depth.
  • Over-moulded innovative endcap and environmental diaphragm, a forged1st stage body offering maximum thermal performance.
  • The 5th 3/8” UNF medium pressure port includes a protective bumper when not in use.
  • Forged first stage body with heat exchanging ribs for maximum thermal performance.
  • Angled HP ports for optimal hose routing and fitting of transmitters.
  • Forged rotating turret with medium pressure ports in a parallel direction for improved hose orientation.
  • Ribbed diaphragm clamp for improved heat exchange in cold waterconditions.
  • Double swivel hose for greater freedom of movement and comfort.
  • Tested for Octopus use - EN250A cold water.
  • Nitrox/Oxygen compatible – Up to 40% O² outside the EU (European Union), within the EU anything above 21% O² must use an M26 Connection.

ADDITIONAL DETAILS

Second Stage
  • High performance, pneumatically balanced, lever operated poppet valve.
  • Large, diver friendly self-flushing controllable purge button.
  • Front cover with over-moulded elastomer incorporates a formed chromeplated brass plate improving durability of the second stage.
  • Large protective elastomer bumpers on the side and on the top to protectthe second stage from impacts and scratches in the most vulnerable places.
  • Reversible second stage for either a left or right hand gas supply configuration.
  • A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
  • Comfo-bite mouthpiece
  • Double swivel hose
  • Flexible nylon braided hose has better cold water performance than traditional rubber hose.
WHAT’S IN THE BOX - MTX-R SIDEMOUNT SET - Dive regulator

WHAT’S IN THE BOX

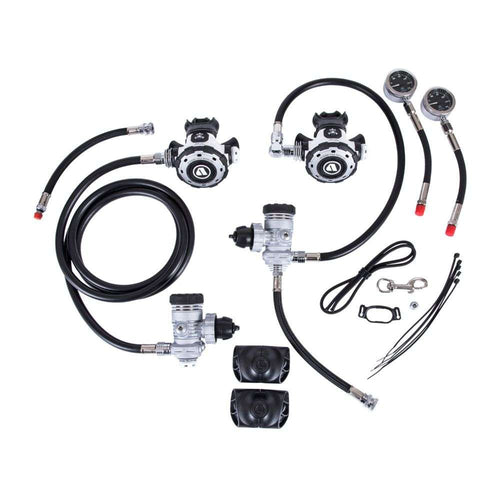

  • 1 DPT DIN 1st stages with 5 port swivel turrets
  • 2 x MTX-R second stages
  • 210cm double swivel hose
  • 61cm double swivel hose
  • 2 x 25cm length MP inflation hoses (one for buoyancy system, one for drysuit)
  • 2 x TEK pressure gauges with 18cm hoses
  • 1 x 90° elbow fitting
  • 1 x bungee necklace
  • 1 x bungee clip
  • 1 x stainless steel bolt snap
  • 2 sets of short exhaust ports
  • Regulator bag
  • Setup illustration, CD manual and quick start guide
  • NOW INCLUDES THE NEW BUNGEE CONNECTOR SYSTEM
See User Manual: Owners_Manual_English_Iss...
