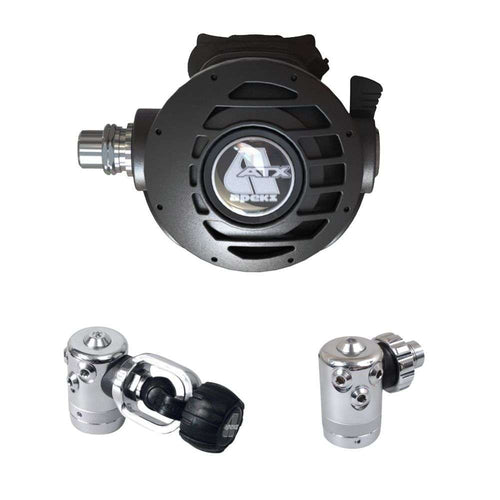

ATX - Dive Regulator
$449.00

ATX - Dive Regulator

$449.00
Before the XTX range of regulators came along, the ATX models ruled the seas. The ATX is still available today and offers a fully balanced first and second stage with cold water capability (can be used in all temperatures including those below 10 C / 50 F). See full details
Colors : Bright Chrome / Black
Connection type :
Find a Store
Item n°: RG117112
Product Details - ATX - Dive Regulator

Product Details

Before the XTX range of regulators came along, the ATX models ruled the seas. The ATX is still available today and offers a fully balanced first and second stage with cold water capability (can be used in all temperatures including those below 10 C / 50 F).

See product features See declaration of conformity: EU_DECLARAT...

FEATURES

First Stage

  • Uses the DS4 first stage
  • Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
  • 1 HP port and 4 MP ports are available.
  • An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.
  • Available in DIN and yoke.

ADDITIONAL DETAILS

Second Stage
  • Pneumatically-balanced second stage results in smooth, easy breathing.
  • The large purge button on the ATX is easy to operate even with thick gloves.
  • The integrated venturi control provides a performance boost at depth while preventing unwanted freeflow at the surface.
  • An extremely efficient exhaust valve improves the breathing performance of the regulator.
  • The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue.
  • A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
  • Offers a compact, integrated exhaust tee.

ENVIRONMENTALLY SEALED

Dry chamber prevents water coming into contact with the 1st stage spring to stop freezing.

SPECS

  • Connections: Yoke or DIN
  • Type of first stage: Over-balanced diaphragm design, environmentally sealed
  • Body Type: Cylindrical with environmental dry seal (DS4)
  • Number of HP ports: 1 (7/16" UNF)
  • Number of MP ports: 4 (3/8" UNF)
  • Environmental Dry Kit: Standard
  • First stage exterior: Chrome over marine brass
  • Coldwater Use: Yes
  • Type of second stage: Pneumatically balanced
  • Integrated Venturi Lever: Yes
  • Mouthpiece: Comfo-bite™
  • Exhaust tee: Diver Changeable - comes with 2 sets
  • Heat Exchanger for freezing resistance: Yes
  • Overall work of breathing (WOB) scores: Avg. 0.85 joules/liter
  • Nitrox compatible: Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
  • Weight: Yoke 1130g
WHAT’S IN THE BOX - ATX - Dive Regulator

WHAT’S IN THE BOX

1st stage, 2nd stage and hoses Download the owner's manual
